Under-Hood ARB Twin-Compressor Switch Panel

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NC-SAMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Under-Hood ARB Twin-Compressor Switch Panel
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0788QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0788

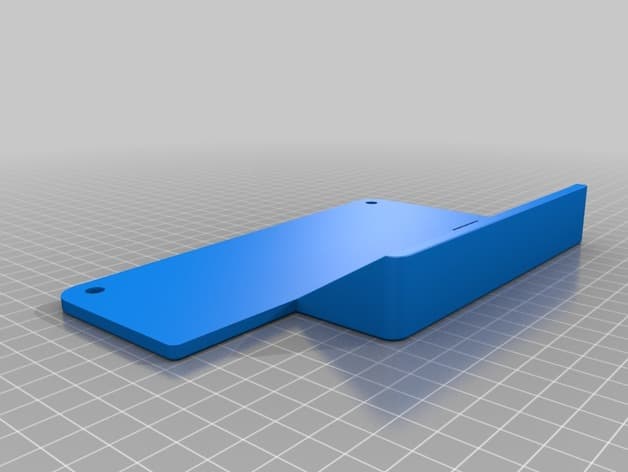

[01]JK_Underhood_ARB_Twin_Air_Switch_Consoler_with_Air_Chuck.stlJK_Underhood_ARB_Twin_Air_Switch_Consoler_with_Air_Chuck.stl.STL

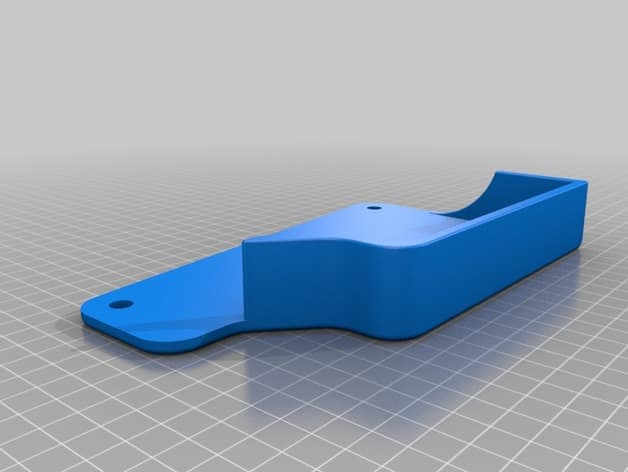

[02]JK_Underhood_ARB_Twin_Air_Switch_Console.stlJK_Underhood_ARB_Twin_Air_Switch_Console.stl.STL
[03]Bounding box197.015 × 118.906 × 55.563 mm
[04]Volume226,065.003 mm³

Field notes

BY RICK BUCKLEY (RICKJEN2)

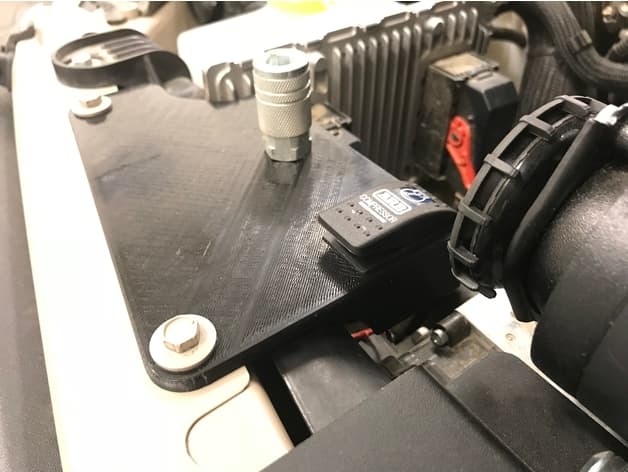

Factory-style under-hood switch panel for a Wrangler JK fitted with an ARB Twin compressor. Versions with and without a reinforced quick-connect air-chuck opening are included.
