Upper Headlight Adjuster Clip

REPLACES OEM4762490

ABS · Nylon1 FILECC-BY-NCLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Upper Headlight Adjuster Clip
OEM: 4762490
APPLICATION: Grand Cherokee ZJ / ZG

Loading 3D viewer...

CARGO ID · CJ-3D / 0914QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

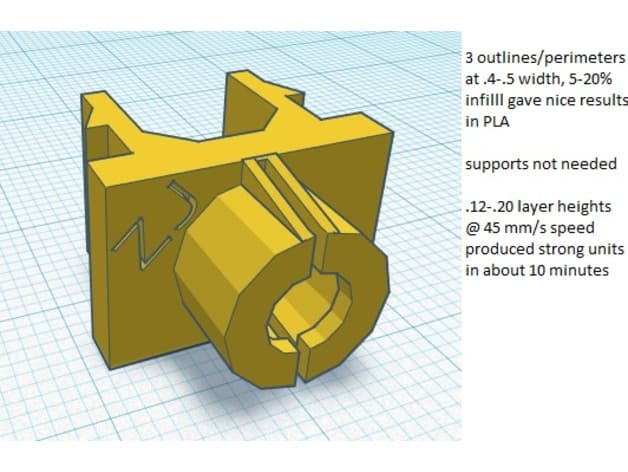

PLATE 01 / 02No caption recorded

Build sheet

MAN-0914

[01]ZJ_Headlight_Upper_Clip_Refined_v2.stlZJ_Headlight_Upper_Clip_Refined_v2.stl.STL
[02]Bounding box18.005 × 17.500 × 12.001 mm
[03]Volume1,264.372 mm³

Field notes

BY PAUL NYHOLM (GINGERKING88)

Strengthened upper clip that retains the Grand Cherokee ZJ headlight reflector to its vertical adjuster. The source covers the full 1993–1998 ZJ range and documents the load-oriented print position.

View original source ↗
