Winch-Controller Socket Bracket

ABS · Nylon · PETG1 FILECC-BY-NCElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Winch-Controller Socket Bracket
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0714QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0714

[01]Winch_bracket_v6.stlWinch_bracket_v6.stl.STL
[02]Bounding box3.000 × 2.760 × 1.700 mm
[03]Volume2.935 mm³

Field notes

BY ISAAC FORTNER (FORTNER_INDUSTRIES)

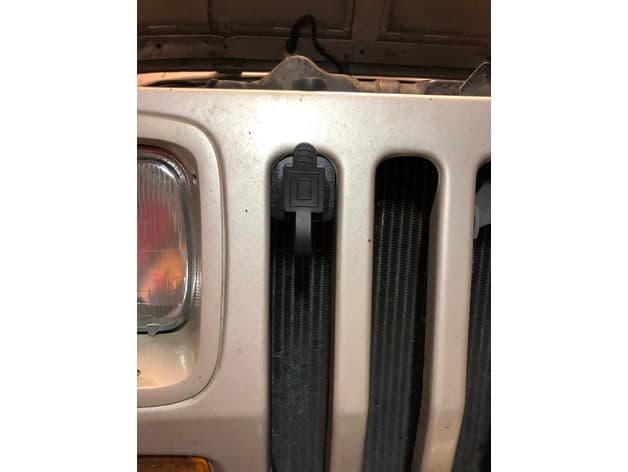

Bracket for relocating a winch-controller jack into a grille slot. Exact grille spacing should be checked before drilling or wiring; speculative CJ and TJ fitment was not assigned.
