Windshield-Bracket Cupholder

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Windshield-Bracket Cupholder
OEM: —
APPLICATION: CJ-5, CJ-7, CJ-8 Scrambler, Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0725QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

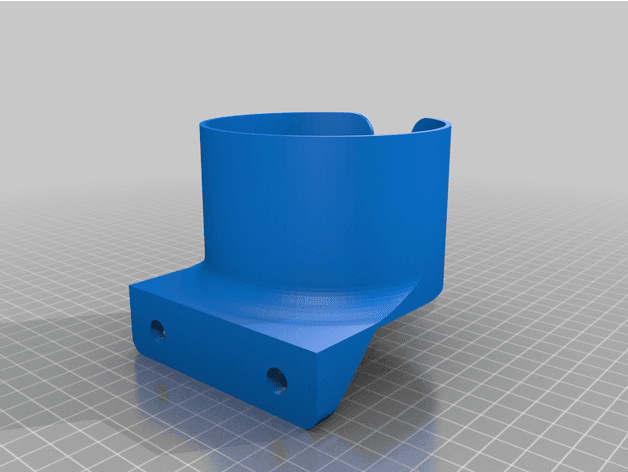

PLATE 01 / 02No caption recorded

Build sheet

MAN-0725

[01]Jeep_Cup_Holder_v1.stlJeep_Cup_Holder_v1.stl.STL
[02]Bounding box106.879 × 94.000 × 87.000 mm
[03]Volume69,887.354 mm³

Field notes

BY CHUCK BRYANT (3RDPIG)

Cupholder that uses the stock windshield-mount-plate holes on late CJ and YJ vehicles without the factory dash pad. It is sized for a mug with a carabiner handle and the creator test-fitted a PETG print.
