Windshield-Folding Dash-Camera Mount

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Windshield-Folding Dash-Camera Mount
OEM: —
APPLICATION: Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0810QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

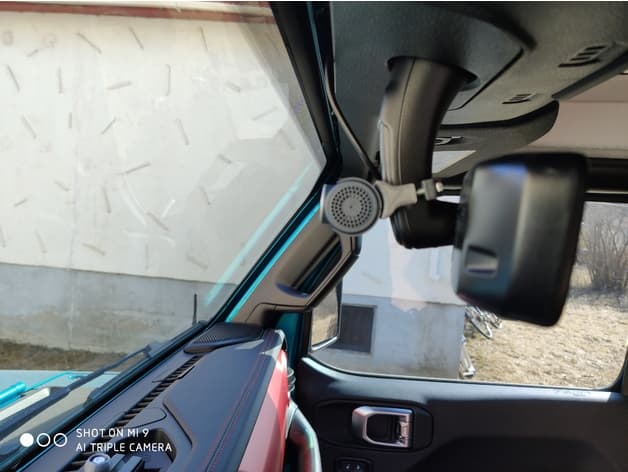

PLATE 01 / 05No caption recorded

Build sheet

MAN-0810

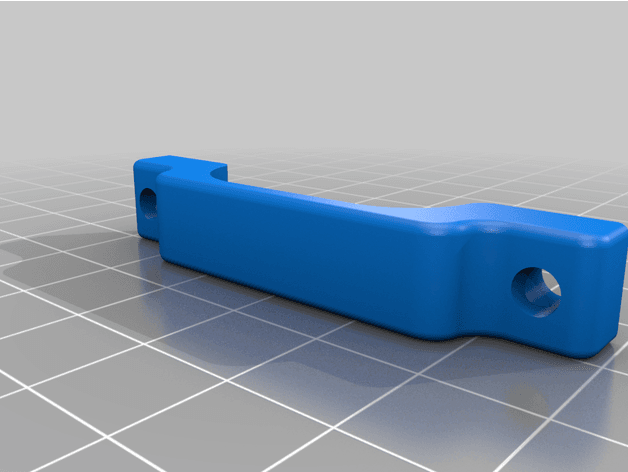

[01]Dash-cam_clamp.stlDash-cam_clamp.stl.STL

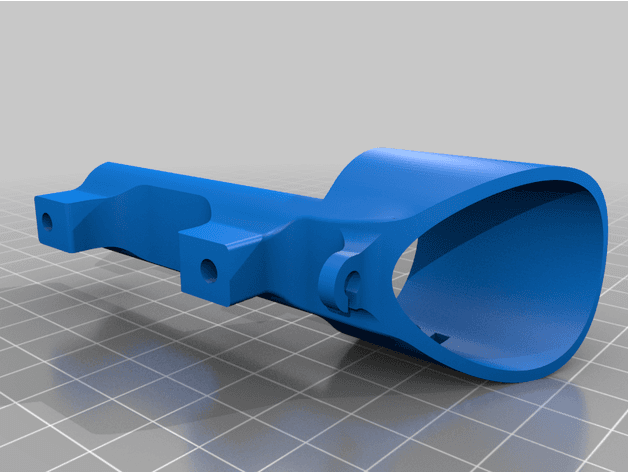

[02]Dash-cam_body.stlDash-cam_body.stl.STL
[03]Bounding box98.000 × 57.743 × 33.999 mm
[04]Volume15,460.641 mm³

Field notes

BY HA LIVES (LIVESDE)

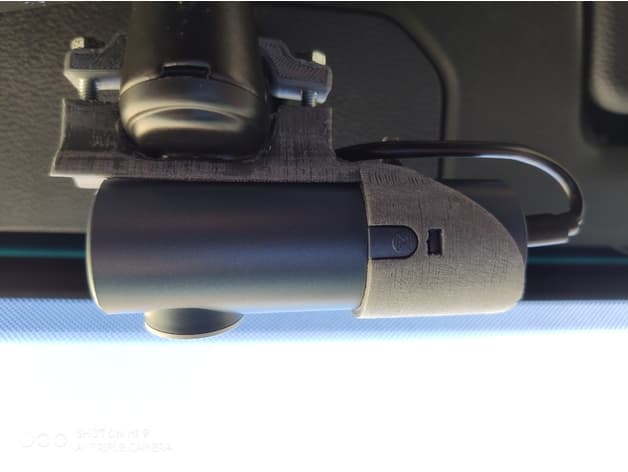

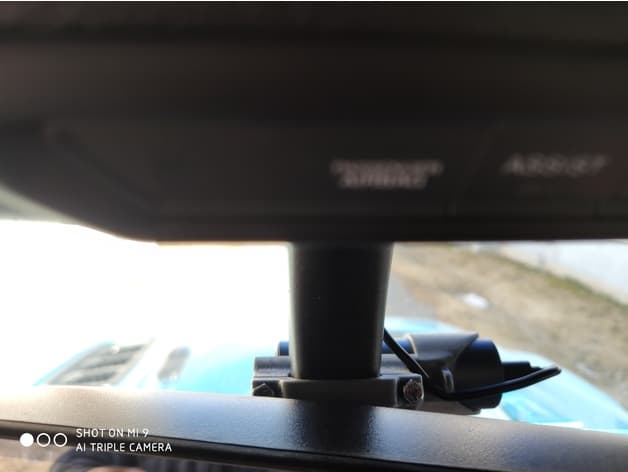

Two-piece Wrangler JL dash-camera mount that clamps at the rear-view mirror area and remains usable with the windshield folded. It assembles with an M4 fastener.
