1984–1996 4.0L Engine-Harness Firewall Grommet

TPU1 FILECC-BYMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1984–1996 4.0L Engine-Harness Firewall Grommet
OEM: —
APPLICATION: Cherokee / Liberty XJ, Comanche MJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0882QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

8 PLATES

PLATE 01 / 08No caption recorded

Build sheet

MAN-0882

[01]xj-mj-oval-firewall-boot.stlxj-mj-oval-firewall-boot.stl.STL
[02]Bounding box90.600 × 54.000 × 32.190 mm
[03]Volume50,200.259 mm³

Field notes

BY SALVAGEDCIRCUITRY

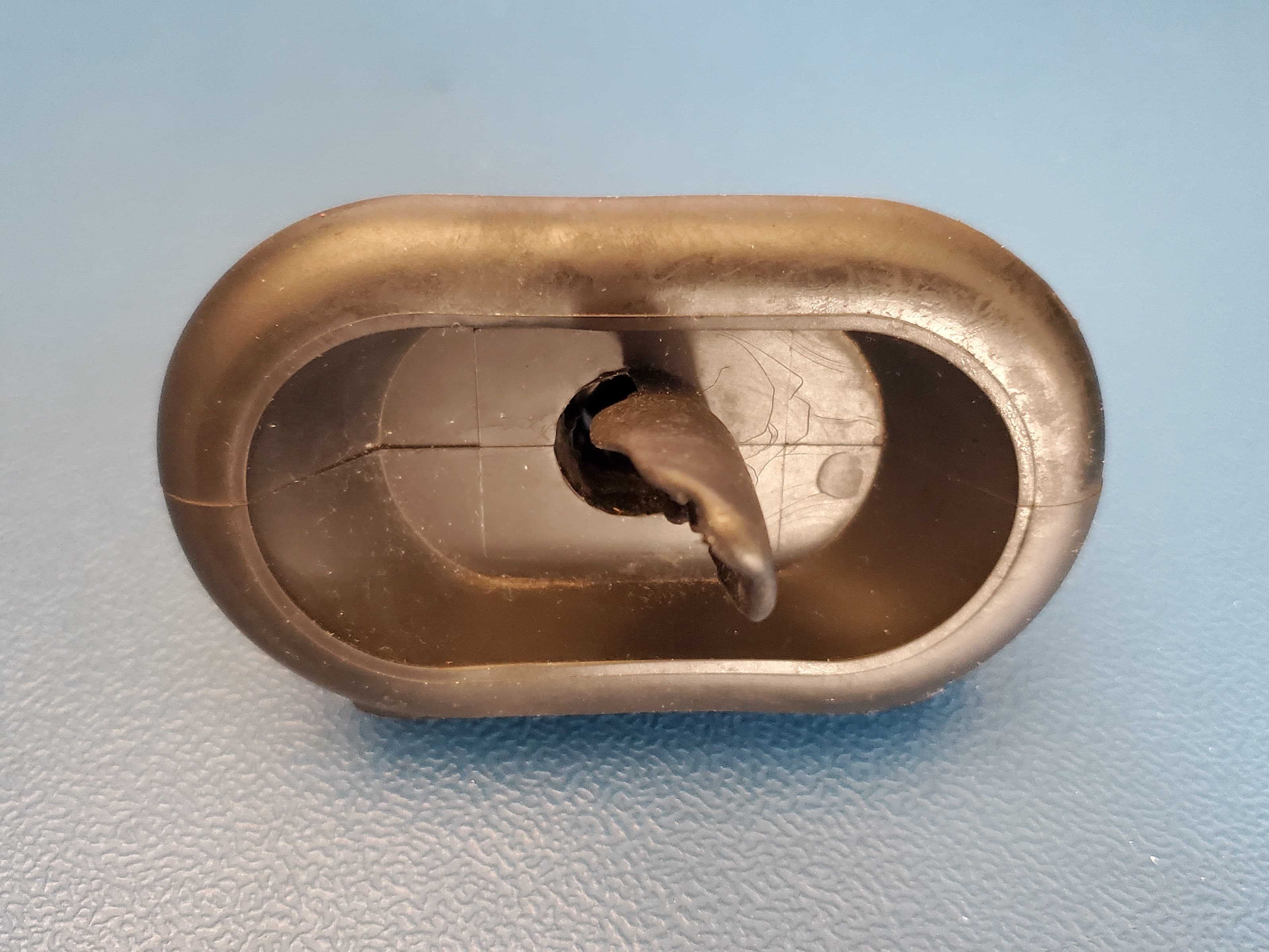

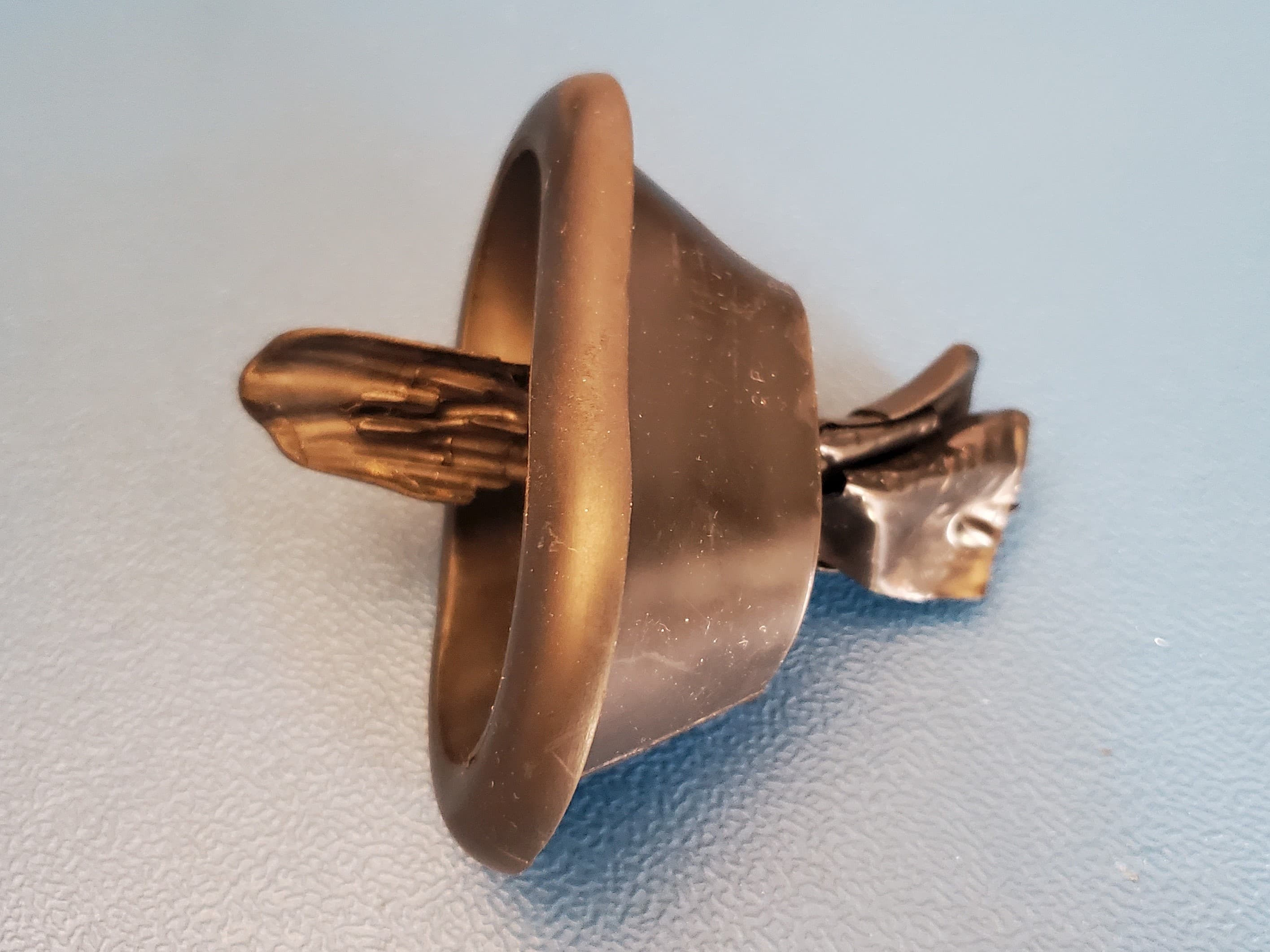

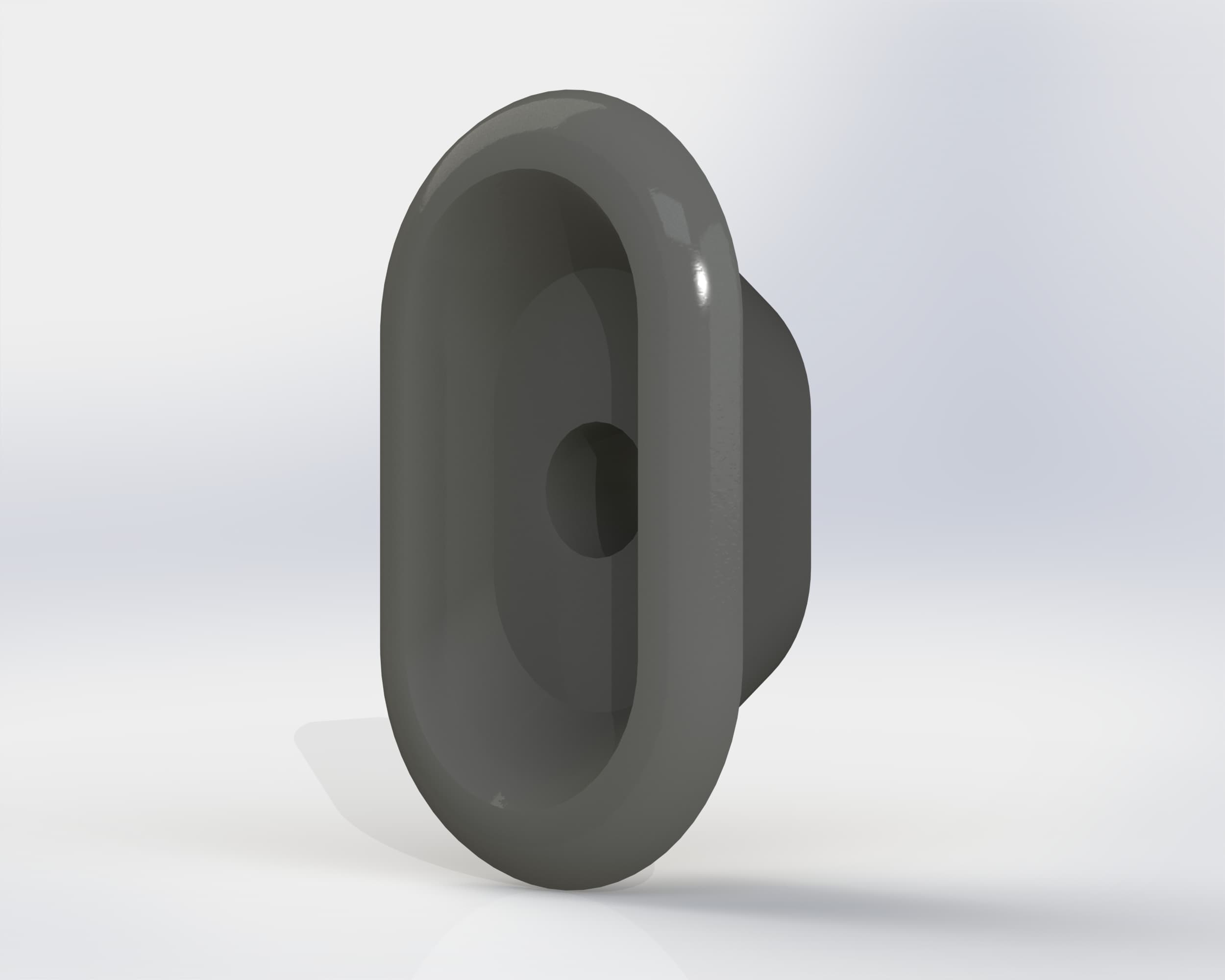

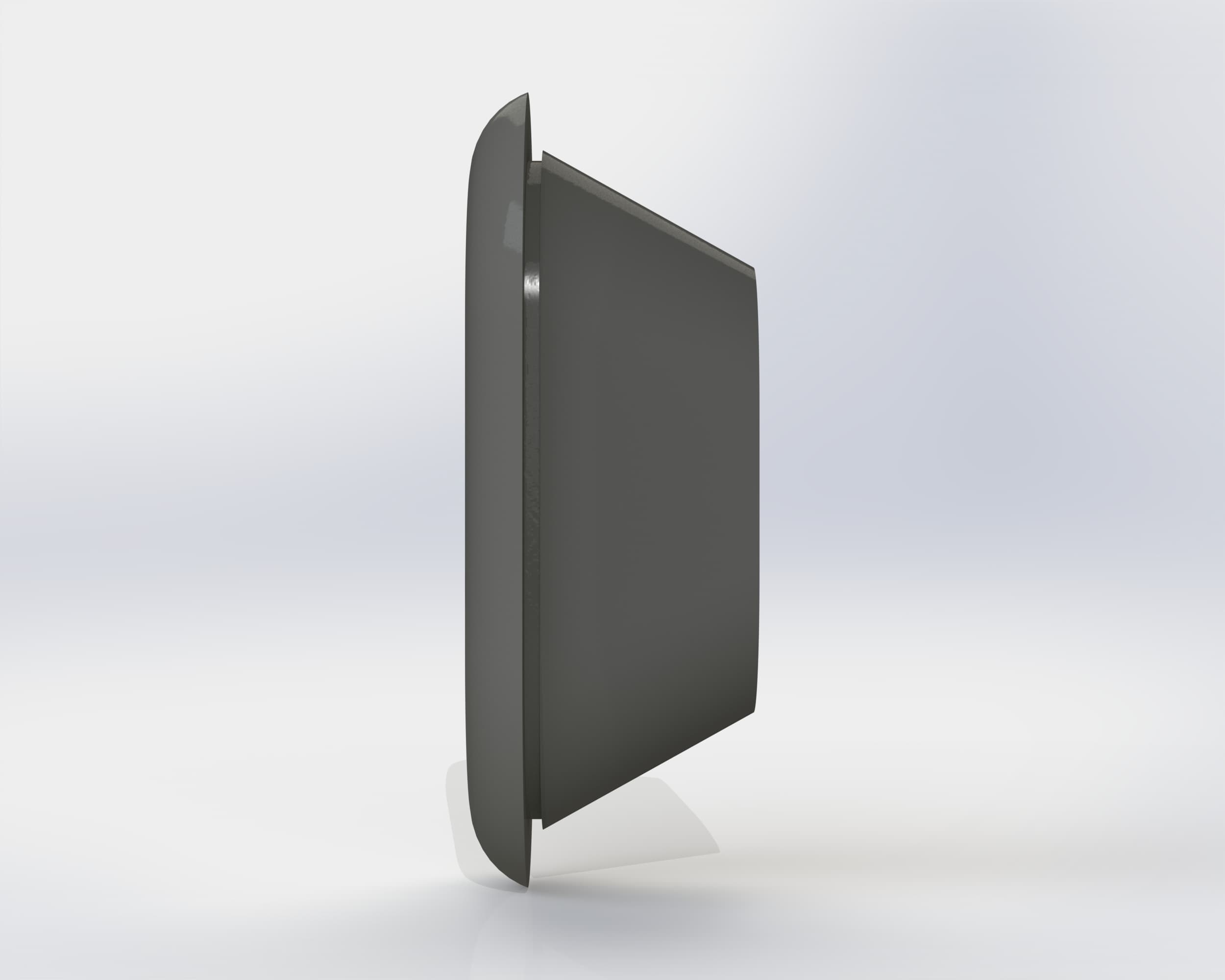

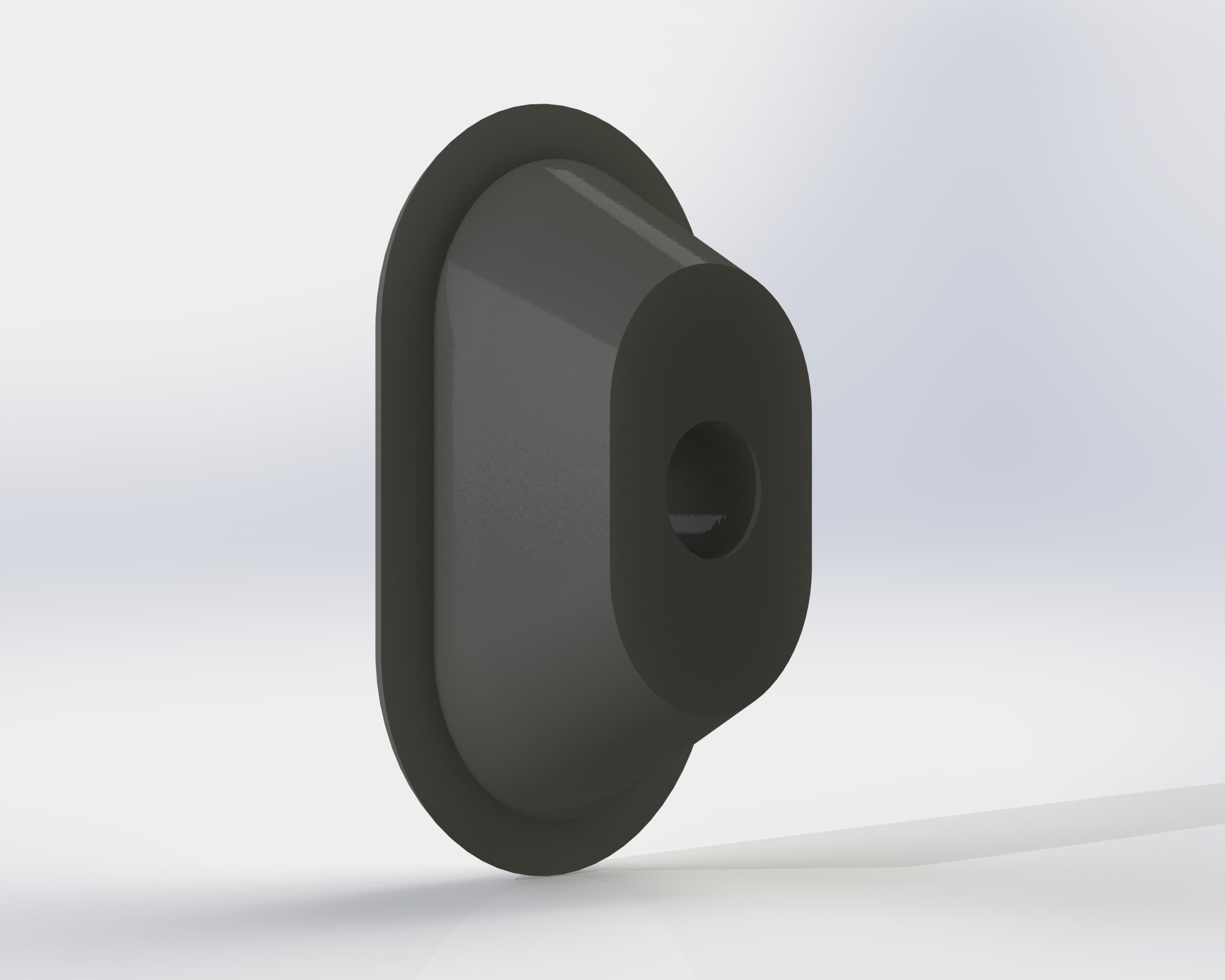

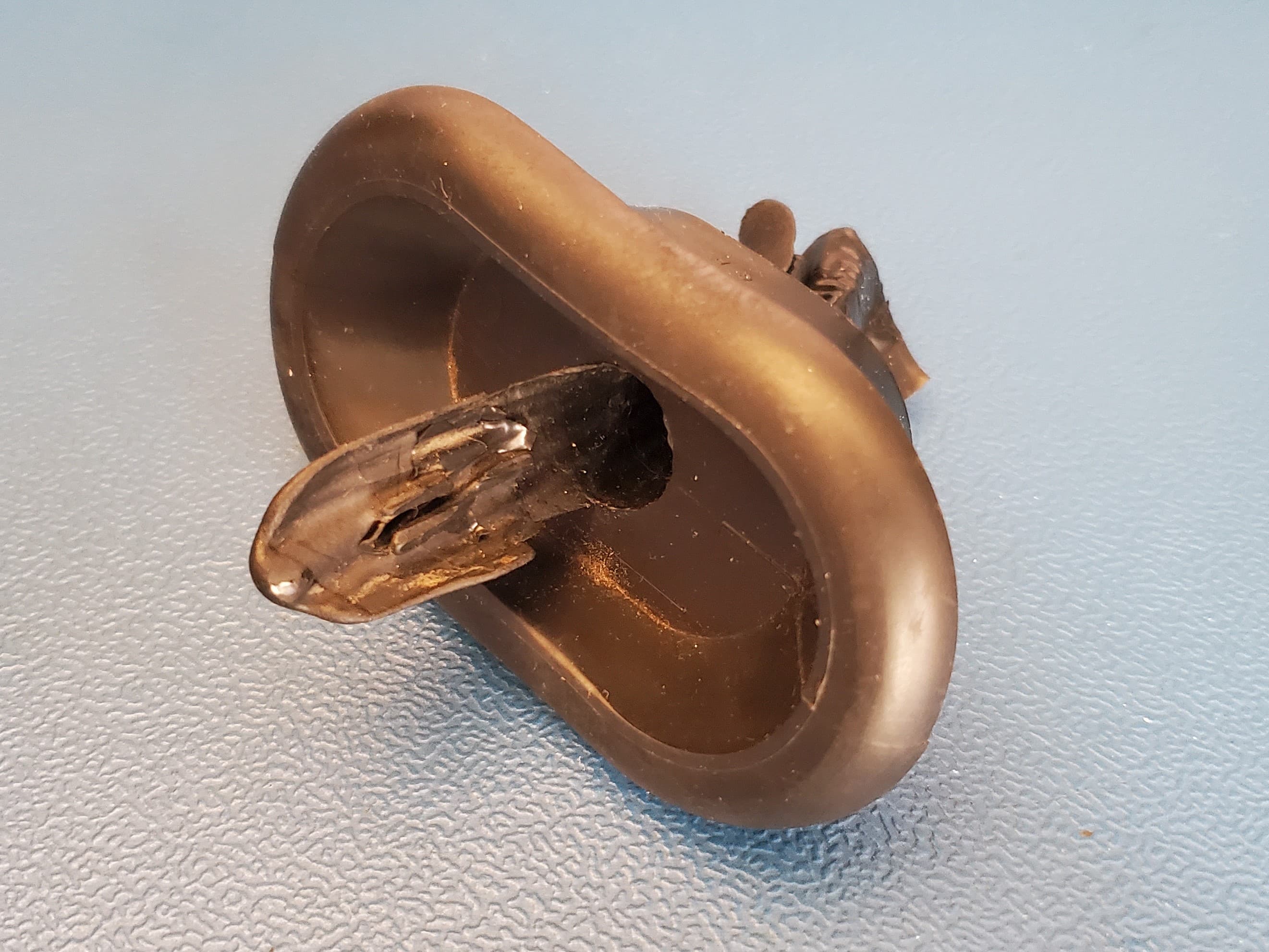

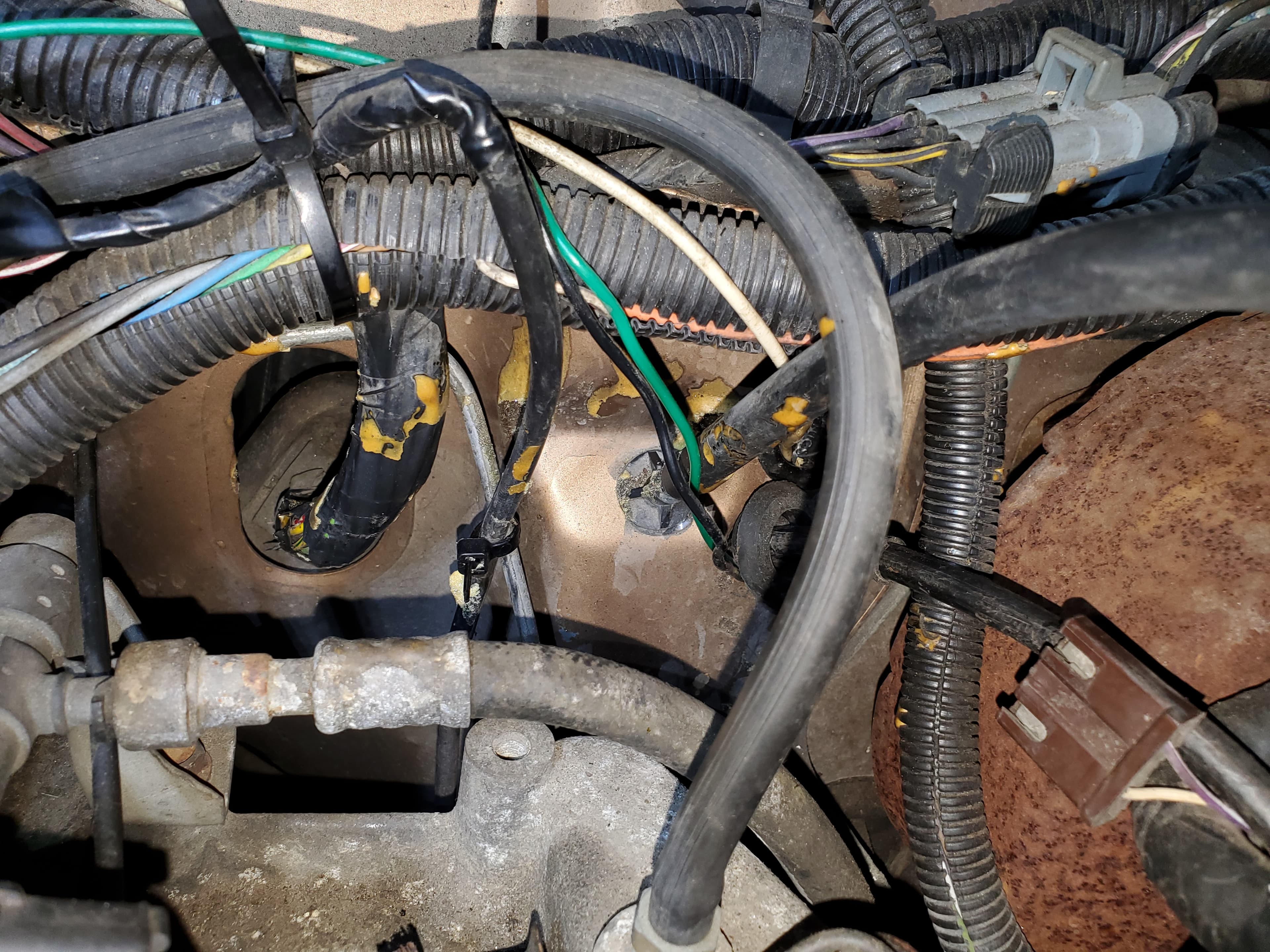

Oval firewall grommet for the 4.0L engine-control harness in 1984–1996 Cherokee XJ and Comanche MJ vehicles. Print in a suitable flexible, heat-resistant material.

View original source ↗
