1989 Clock-Opening Switch Panel

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1989 Clock-Opening Switch Panel
OEM: —
APPLICATION: Cherokee / Liberty XJ, Comanche MJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0845QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0845

[01]89_Jeep_MJ_Comanche_XJ_Cherokee_Dash_Clock_Swap_Switch_Panel_No_Holes_v1.stl89_Jeep_MJ_Comanche_XJ_Cherokee_Dash_Clock_Swap_Switch_Panel_No_Holes_v1.stl.STL
[02]89_Jeep_MJ_Comanche_XJ_Cherokee_Dash_Clock_Swap_Switch_Panel_with_Holes.stl89_Jeep_MJ_Comanche_XJ_Cherokee_Dash_Clock_Swap_Switch_Panel_with_Holes.stl.STL
[03]Bounding box152.400 × 99.695 × 60.960 mm
[04]Volume221,069.634 mm³

Field notes

BY JACOB FASSETT (MJJEEP)

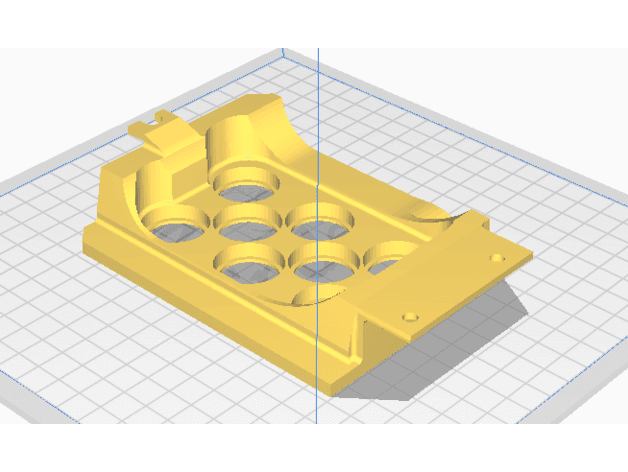

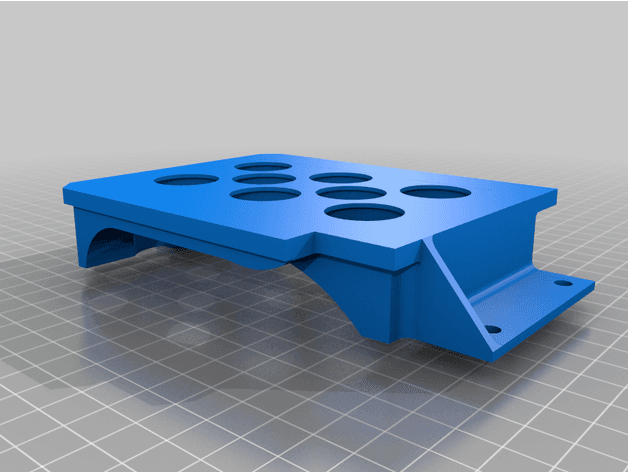

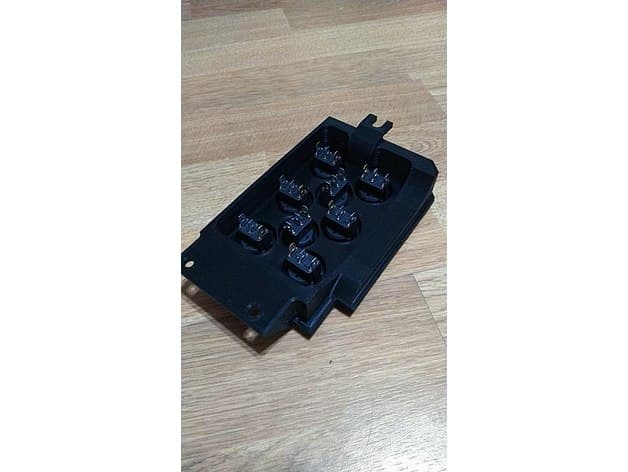

Clock-delete switch panel developed on a 1989 Comanche MJ and stated by the creator to fit the Cherokee XJ dashboard. Blank and pre-drilled switch layouts are included.

View original source ↗
