ICOM IC-7100 Dashboard Mount

ABS · Nylon1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: ICOM IC-7100 Dashboard Mount
OEM: —
APPLICATION: Gladiator JT, Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0975QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0975

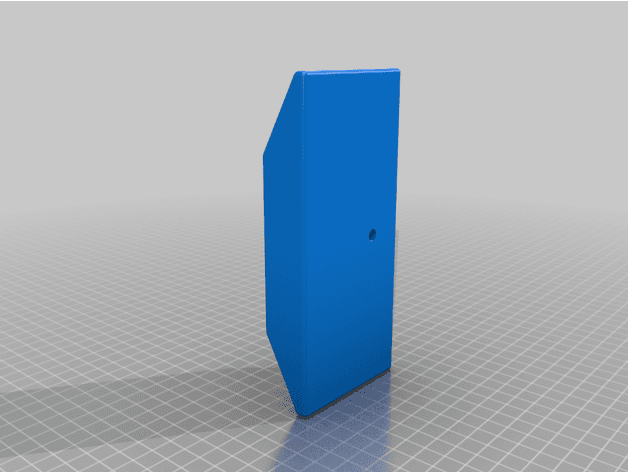

[01]Mount.7100-V5.stlMount.7100-V5.stl.STL
[02]Bounding box160.000 × 72.400 × 28.008 mm
[03]Volume185,849.46 mm³

Field notes

BY KEITH F. (JUNKBOX)

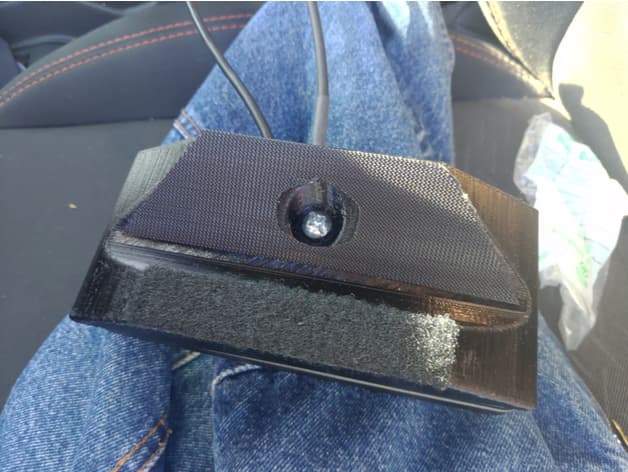

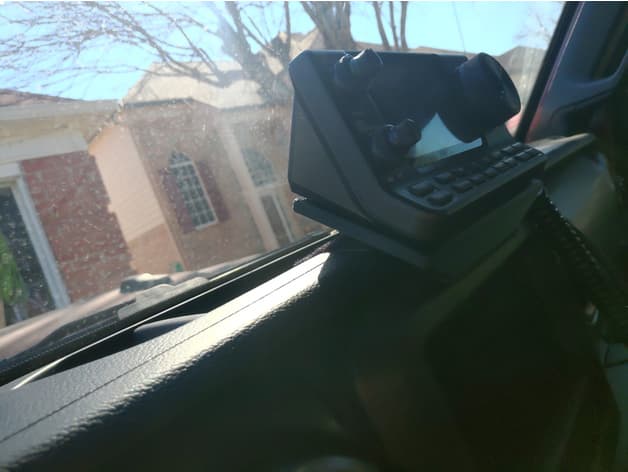

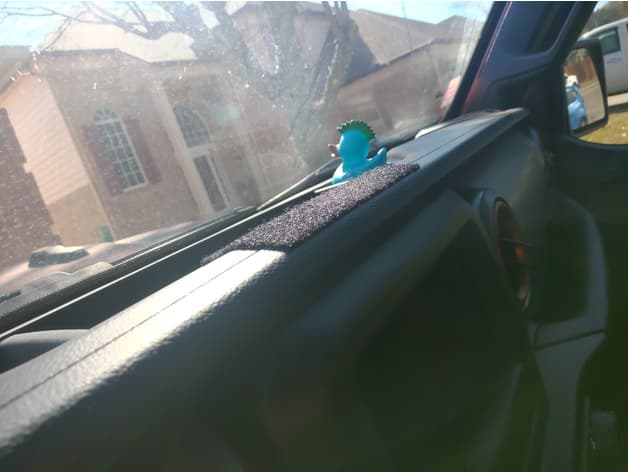

Vehicle-specific dashboard-pocket mount for the ICOM IC-7100 control head in Wrangler JL and Gladiator JT interiors. The source documents several weeks of installed use and uses removable hook-and-loop fastening.
