Key-Fob Alarm-Button Guard

ABS · Nylon · PETGMULTI-PART2 FILES0 DOWNLOADSCC-BY-NCCabin trim, cargo & roof

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Key-Fob Alarm-Button Guard
OEM: —
APPLICATION: Gladiator JT, Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0981QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

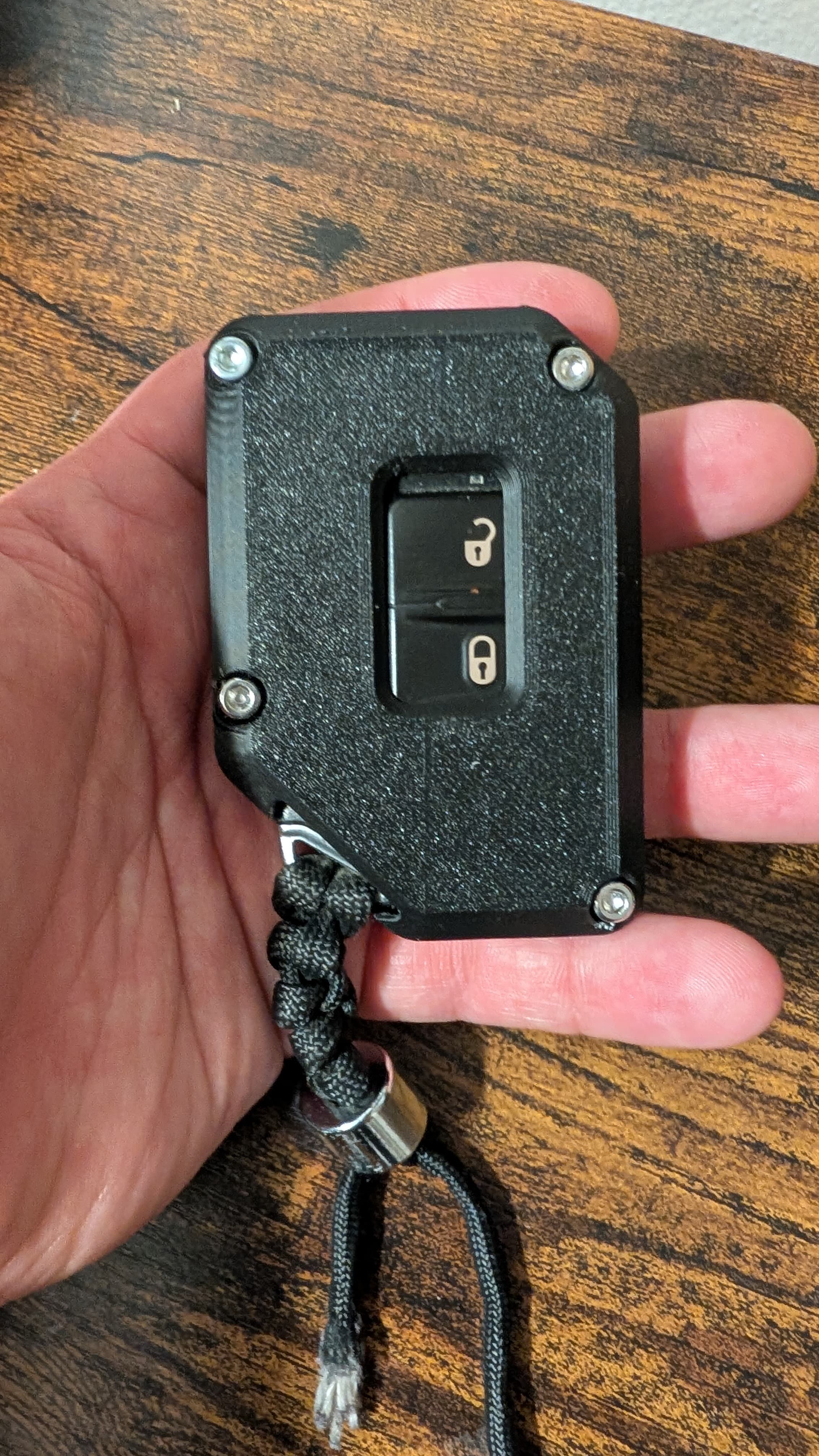

Key-Fob Alarm-Button Guard — image 1 of 2

PLATE 01 / 02No caption recorded

Build sheet

MAN-0981

[01]key-fob-cover-logo-side.stepkey-fob-cover-logo-side.step.STL
[02]key-fob-cover-button-side.stepkey-fob-cover-button-side.step.STL
[03]Bounding box82.500 × 56.500 × 22.500 mm
[04]Volume32,158.043 mm³

Field notes

BY MUGWIT

Two-piece protective shell for Wrangler JL and Gladiator JT key fobs. The bolted enclosure shields the panic button from accidental pocket presses while retaining access to the normal controls.
