Toyota Push-Switch Dashboard Adapter

ABS · Nylon · PETG1 FILECC-BY-NC-SADashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Toyota Push-Switch Dashboard Adapter
OEM: —
APPLICATION: Cherokee / Liberty XJ, Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0741QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

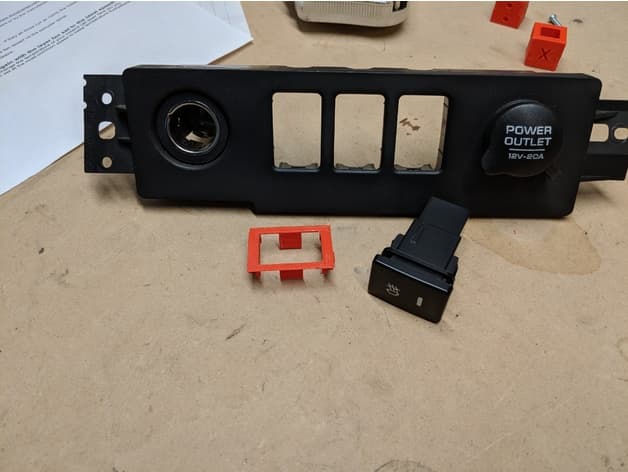

PLATE 01 / 03No caption recorded

Build sheet

MAN-0741

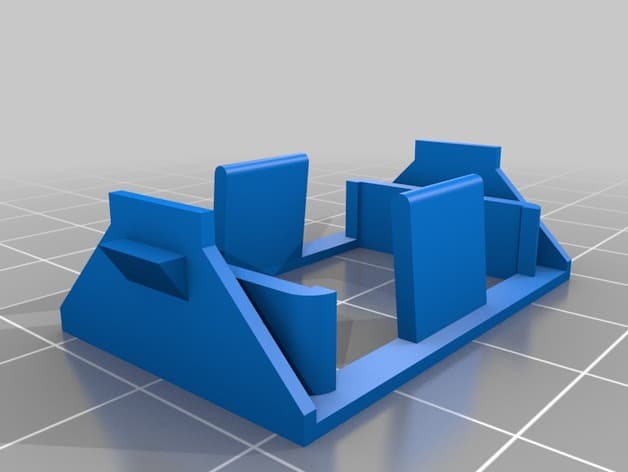

[01]TSP_to_XJ_Adapter_v5.stlTSP_to_XJ_Adapter_v5.stl.STL
[02]Bounding box40.145 × 23.800 × 11.336 mm
[03]Volume1,362.628 mm³

Field notes

BY BOB DOLE (WIZARDPC_GCT)

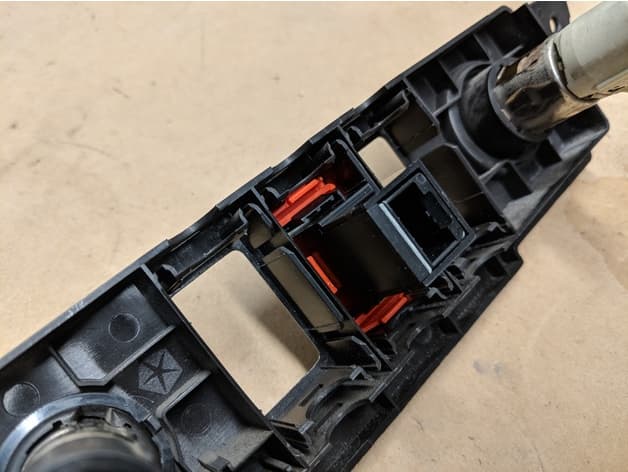

Adapter that fits a short, wide Toyota-pattern push switch into the factory Jeep switch panel. The creator specifies 1997–2004 Wrangler TJ and 1997–2001 Cherokee XJ applications.

View original source ↗
