Yaesu FTM-500 Control-Head Mount

ABS · NylonMULTI-PART2 FILESCC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Yaesu FTM-500 Control-Head Mount
OEM: —
APPLICATION: Gladiator JT, Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0985QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0985

[01]ftm-500-faceplate-mount-final.stlftm-500-faceplate-mount-final.stl.STL
[02]ftm-500-faceplate-final.stlftm-500-faceplate-final.stl.STL
[03]Bounding box234.000 × 64.500 × 63.000 mm
[04]Volume119,290.384 mm³

Field notes

BY STRYKKER 3D

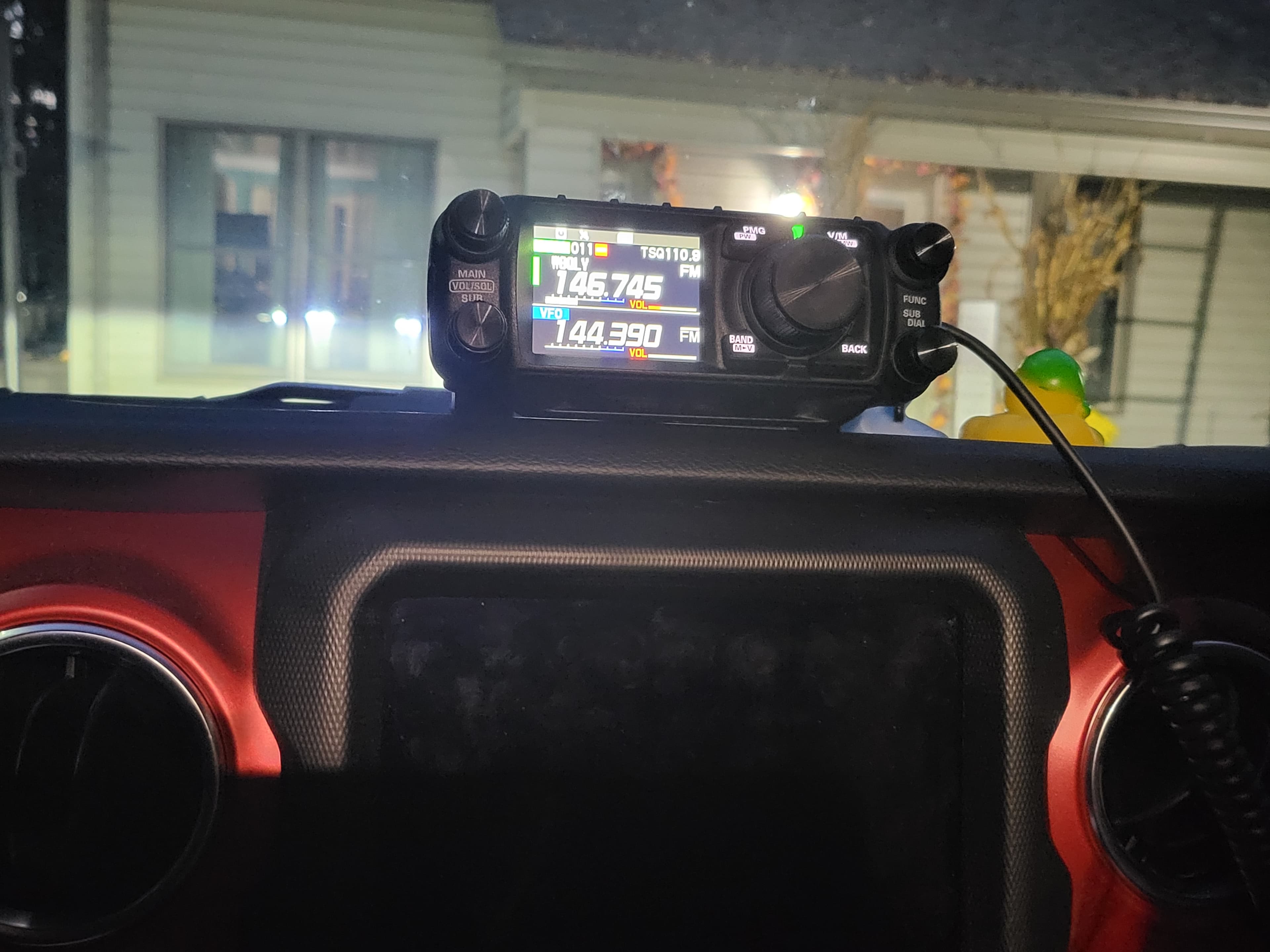

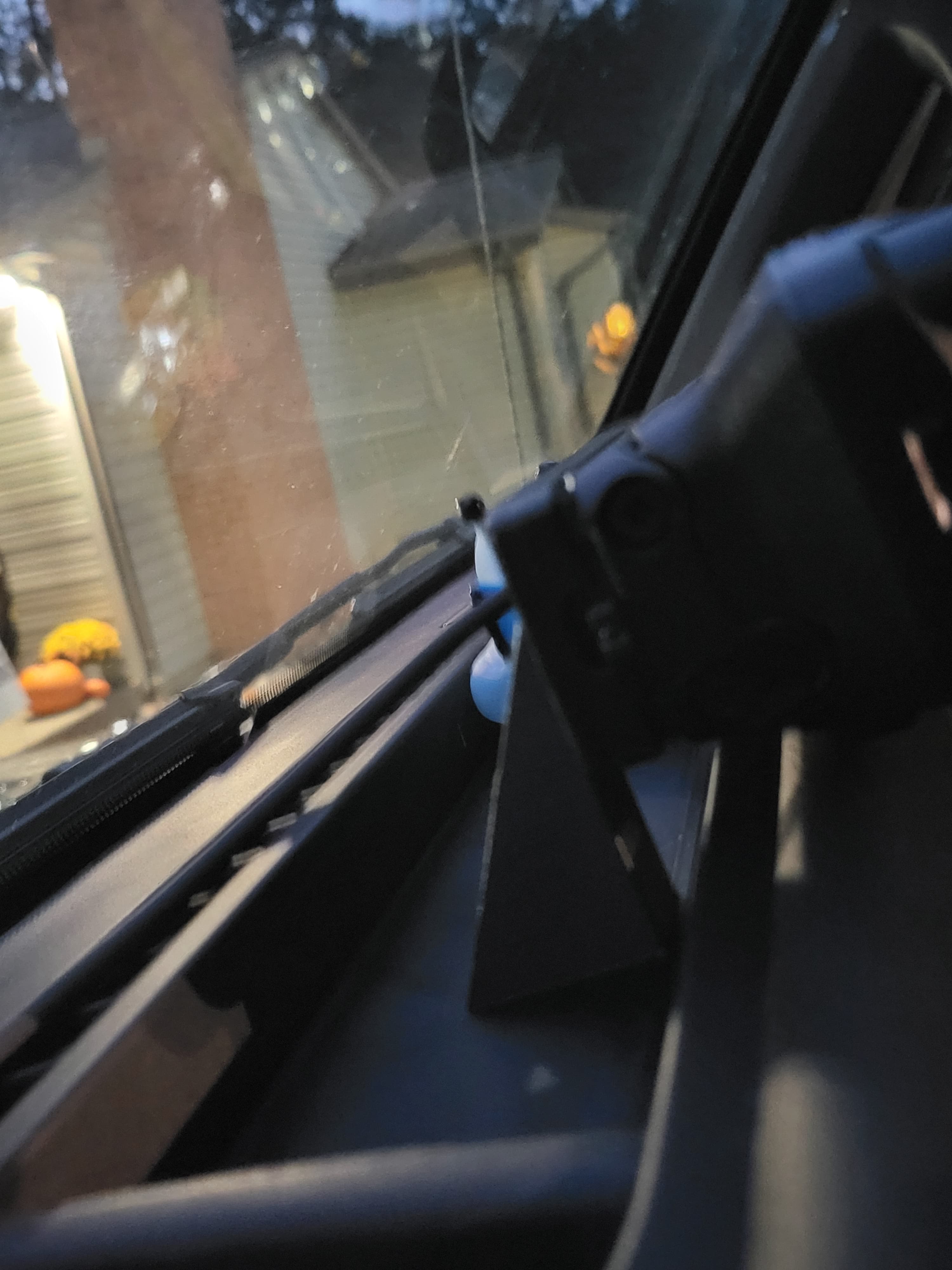

Two-piece dashboard-pocket mount for a Yaesu FTM-500 control head in Wrangler JL and Gladiator JT vehicles. It requires no vehicle drilling and the source documents the installed assembly from three angles.
